Angled Nut Splitter
The Angled Nut Splitter is a precision-engineered tool designed for the safe and efficient removal of corroded, seized, or damaged nuts. Its compact angled design allows access in tight or restricted spaces where conventional tools cannot fit. Constructed from high-strength alloy steel, it delivers reliable performance under heavy-duty industrial conditions. The replaceable cutting wedges and manual or hydraulic operation options ensure versatility and cost-effective maintenance. This tool is ideal for industrial shutdowns, maintenance projects, and routine operations across oil & gas, power, chemical, and marine industries.
Technical Specifications:
Hex Size : 10-165 mm.
Thread Size : M6-M108.
Weight : 1 – 215 kg.
Applications:
- Removal of corroded, seized, or damaged nuts in industrial machinery.
- Maintenance of oil & gas pipelines and pressure vessel flanges.
- Power plant operations including turbines, boilers, and heat exchangers.
- Chemical and petrochemical plant maintenance.
- Offshore platforms, rigs, and marine installations.
- Industrial shutdown and turnaround maintenance projects.
- Repair and replacement of rusted or worn nuts in confined spaces.
Key Features:
Allows safe and easy access to nuts in confined, restricted, or hard-to-reach spaces where conventional tools cannot fit.
Provides superior durability and long service life, ensuring reliable performance even under heavy-duty industrial operations.
Enables quick and cost-effective replacement, reducing downtime and maintenance costs while maintaining optimal cutting efficiency.
Delivers clean and accurate splitting of nuts without causing damage to bolts, flanges, or surrounding equipment.
Facilitates easy transport, handling, and on-site operation, improving efficiency during maintenance or shutdown projects.
Reduces operator fatigue during prolonged use and enhances safety during challenging maintenance tasks.
Product Specifications:
- Technical Data

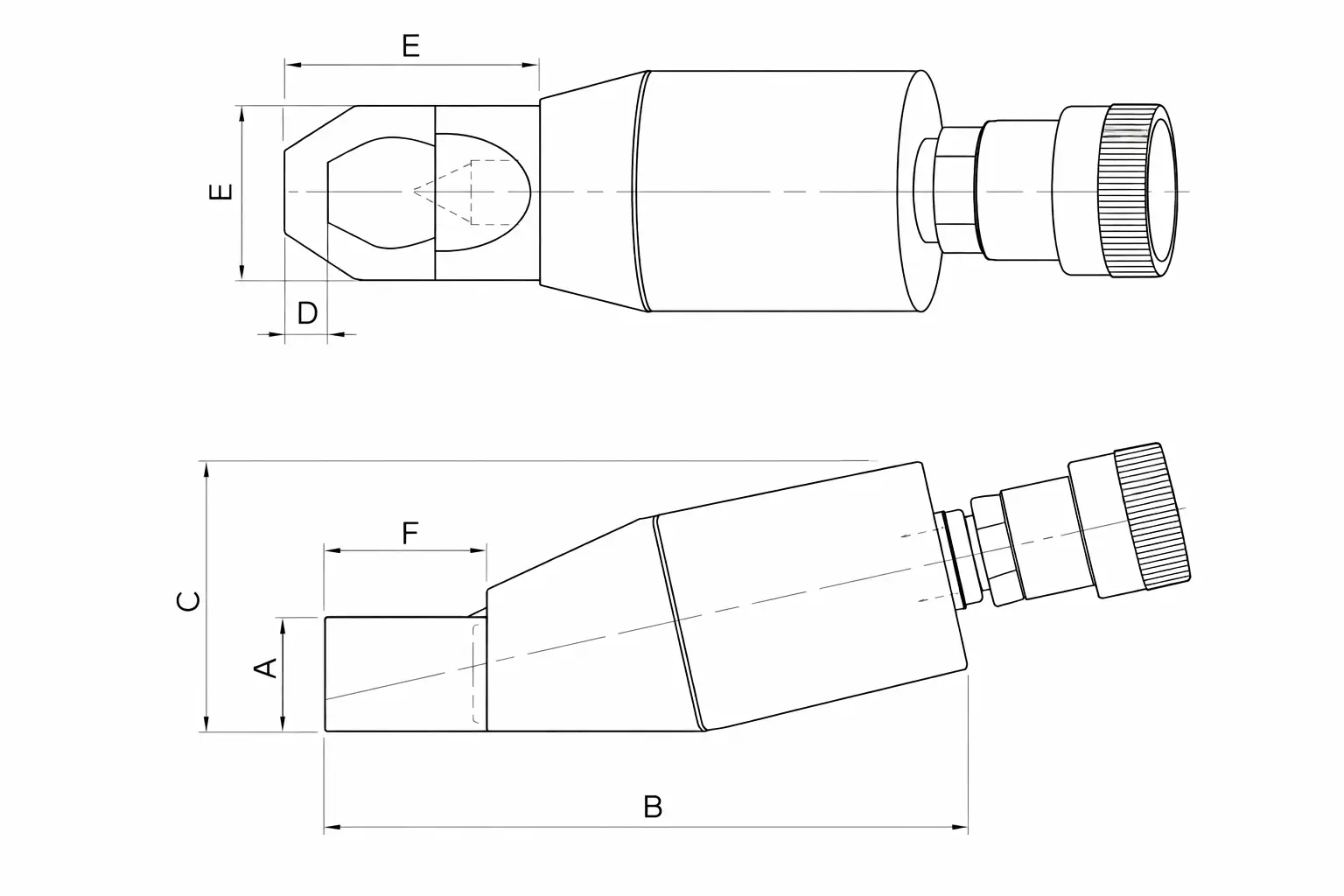

| Model No | Hex Size (mm) | Thread Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| TNSA-1019 | 10–19 | M6–M12 | 40 | 52 | 8 | 20 | 130 | 30 | 1 |
| TNSA-1924 | 19–24 | M12–M16 | 54 | 67 | 12 | 24 | 163 | 41 | 2 |
| TNSA-2432 | 24–32 | M16–M22 | 64 | 79 | 13 | 30 | 187 | 52 | 3 |
| TNSA-3241 | 32–41 | M22–M27 | 78 | 94 | 20 | 37 | 219 | 69 | 4.5 |
| TNSA-4150 | 41–50 | M27–M33 | 95 | 113 | 21 | 45 | 265 | 78 | 9.6 |
| TNSA-5060 | 50–60 | M33–M39 | 106 | 128 | 25 | 54 | 297 | 91 | 13 |
| TNSA-6075 | 60–75 | M39–M48 | 156 | 185 | 27 | 75 | 375 | 110 | 34 |
| TNSA-7598 | 75–98 | M48–M64 | 162 | 192 | 29 | 80 | 458 | 184 | 100 |
| TNSA-95108 | 95–108 | M64–M72 | 190 | 194 | 29 | 96 | 578 | 250 | 205 |
| TNSA-114127 | 114–127 | M76–M83 | 230 | 194 | 29 | 105 | 585 | 250 | 210 |
| TNSA-124136 | 124–136 | M83–M89 | 240 | 194 | 29 | 105 | 596 | 250 | 215 |
| TNSA-146165 | 146–165 | M95–M108 | 300 | 240 | 29 | 127 | 610 | 317 | 215 |
