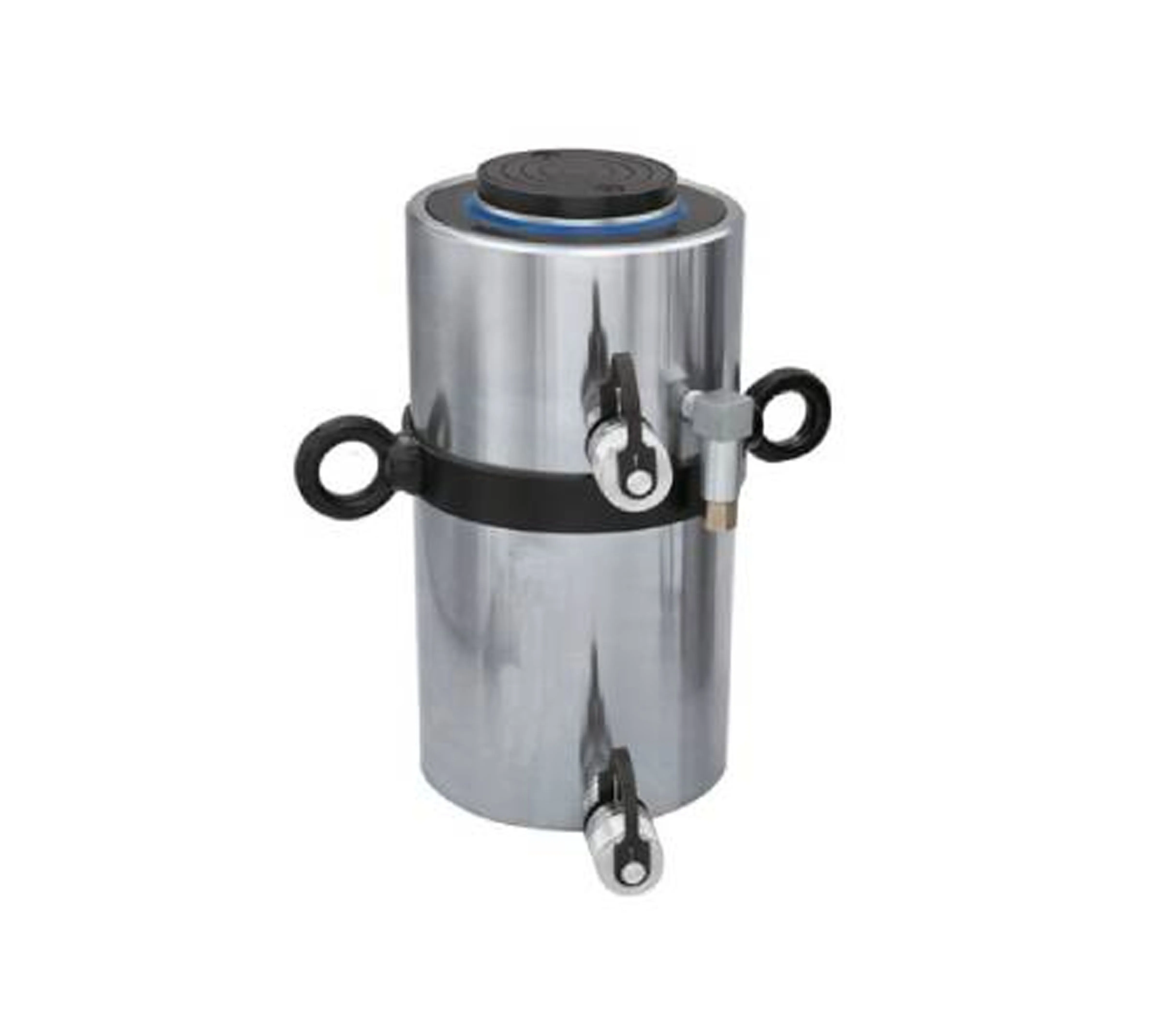

Heavy-Lift, Threaded Ram with Safety Lock Nut Cylinders
Heavy-Lift High-Tonnage Threaded Nut Cylinders are engineered for industrial applications requiring maximum lifting capacity and reliable load holding. Featuring a robust threaded-nut mechanism, these cylinders provide mechanical load retention, ensuring the lifted load remains secure even after hydraulic pressure is released. Designed for heavy-duty lifting, jacking, and structural support, they are ideal for foundations, bridge supports, machinery positioning, and industrial maintenance tasks.
Built from high-strength alloy steel with precision machining, these cylinders deliver consistent performance under demanding conditions.
Technical Specifications:
Cylinder Capacity : 10-100 ton.
Stroke : 50-150 mm.
Closed Height : 150-475 mm.
Material : Steel.
Applications:
- Lifting and jacking heavy equipment in industrial plants and factories.
- Foundation levelling and adjustment during construction projects.
- Bridge support and structural alignment in civil engineering applications.
- Maintenance and overhaul of heavy machinery and large mechanical assemblies.
- Precise positioning of large components in fabrication workshops .
- Load support during shutdowns, retrofitting, or equipment replacement.
- Controlled lifting and holding in mining, power, and infrastructure projects.
- High-load tasks requiring sustained mechanical load holding over time.
- Heavy-duty lifting in confined spaces where standard jacks are insufficient.
- Multi-point lifting and alignment for structural or industrial installations.
Key Features:
Designed with strong materials and robust manufacturing to withstand harsh environments, heavy loads, and repeated use under demanding conditions.
Available in capacities ranging from 10 ton up to 1000 ton — suitable for heavy lifting, jacking, and load-bearing applications in industrial, construction, and infrastructure settings.
Multiple models offer different stroke lengths and closed heights — giving flexibility to choose the cylinder that best fits the job’s lifting height and clearance requirements.
Because of the mechanical lock-nut design, the cylinder ensures secure load retention — suitable for foundation work, structural support, bridge jacking, and similar critical lifting tasks.
Equipped with a heavy-duty threaded nut that mechanically locks the load after lifting, enabling sustained support even when hydraulic pressure is released — ideal for jobs requiring long periods of load holding or waiting.
Mechanical locking reduces dependence on hydraulic pressure alone, lowering risk of unintended load drop — critical for safety in structural, construction, and maintenance work.
Suitable for tasks such as foundation levelling, bridge support, heavy equipment jacking, structural alignment, maintenance, and other high-load lifting/support operations.
Product Specifications:
- Technical Data
| Model No. | Cylinder Capacity (ton) | Stroke (mm) | Closed Height (mm) | Weight (Approx) (kg) |
|---|---|---|---|---|
| TCT 102 | 10 | 50 | 150 | 2.5 |
| TCT 104 | 10 | 100 | 200 | 4 |
| TCT 106 | 10 | 150 | 250 | 5 |
| TCT 152 | 15 | 50 | 160 | 4 |
| TCT 154 | 15 | 100 | 210 | 6 |
| TCT 156 | 15 | 150 | 260 | 7 |
| TCT 202 | 20 | 50 | 170 | 7 |
| TCT 204 | 20 | 100 | 220 | 8 |
| TCT 206 | 20 | 150 | 270 | 9 |
| TCT 252 | 25 | 50 | 185 | 8 |
| TCT 254 | 25 | 100 | 235 | 10 |
| TCT 256 | 25 | 150 | 285 | 12 |
| TCT 302 | 30 | 50 | 185 | 11 |
| TCT 304 | 30 | 100 | 245 | 13 |
| TCT 306 | 30 | 150 | 295 | 15 |
| TCT 502 | 50 | 50 | 210 | 19 |
| TCT 504 | 50 | 100 | 260 | 23 |
| TCT 506 | 50 | 150 | 310 | 26 |
| TCT 1002 | 100 | 50 | 260 | 40 |
| TCT 1004 | 100 | 100 | 300 | 47 |
| TCT 1006 | 100 | 150 | 350 | 55 |
| TCT 1502 | 150 | 50 | 285 | 66 |
| TCT 1504 | 150 | 100 | 315 | 78 |
| TCT 1506 | 150 | 150 | 365 | 90 |
| TCT 2002 | 200 | 50 | 280 | 93 |
| TCT 2004 | 200 | 100 | 330 | 108 |
| TCT 2006 | 200 | 150 | 380 | 124 |
| TCT 2502 | 250 | 50 | 296 | 115 |
| TCT 2504 | 250 | 100 | 346 | 130 |
| TCT 2506 | 250 | 150 | 396 | 160 |
| TCT 3002 | 300 | 50 | 310 | 155 |
| TCT 3004 | 300 | 100 | 360 | 180 |
| TCT 3006 | 300 | 150 | 410 | 205 |
| TCT 4002 | 400 | 50 | 350 | 230 |
| TCT 4004 | 400 | 100 | 450 | 254 |
| TCT 4006 | 400 | 150 | 450 | 285 |
| TCT 5002 | 500 | 50 | 375 | 301 |
| TCT 5004 | 500 | 100 | 425 | 327 |
| TCT 5006 | 500 | 150 | 475 | 365 |
