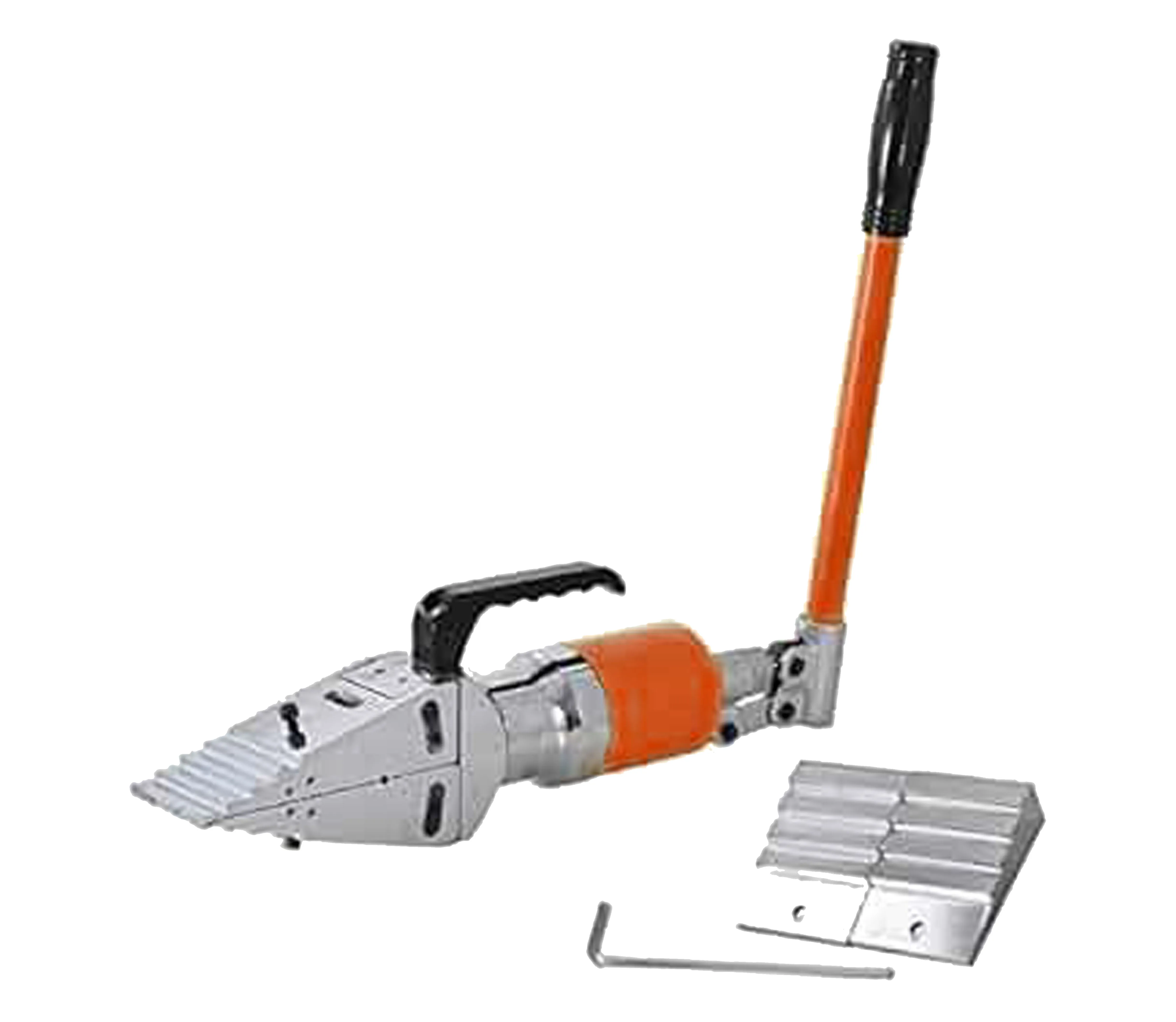

Manual Wedge Flange Spreader
The Manual Wedge Flange Spreader is a compact and reliable tool designed for the safe, controlled separation of flange joints during gasket replacement, inspection, and general maintenance work. Its slim wedge profile allows easy insertion into narrow flange gaps, enabling smooth and precise spreading without damaging gasket surfaces or flange faces. Engineered from high-strength steel, the tool delivers consistent performance in demanding industrial environments where hydraulic power is not available or practical.Lightweight, portable, and simple to operate, it is ideal for field service teams and maintenance crews working in oil & gas, chemical processing, power plants, marine, and pipeline applications.
Technical Specifications:
Jaws Closed : 6mm/0.24”
Jaws Open : 80mm/3.16”
Rated Force : 8ton/17000lbs
Weight : 7kg/16 lbs
Applications:
- Separation of flange joints during gasket replacement and routine maintenance.
- Opening and aligning flanges for inspection, cleaning, or sealing surface checks.
- Safe spreading of corroded or tightly sealed flanges in pipelines and process equipment.
- Maintenance work in oil & gas plants, refineries, and petrochemical facilities.
- Power plant applications including boilers, turbines, and heat-exchanger flange joints.
- Marine, offshore, and shipyard flange maintenance tasks.
- Shutdown, turnaround, and field service operations where hydraulic power is not available.
- Valve installation, spool replacement, and pipeline repair activities.
Key Features:
Allows easy insertion into narrow flange gaps, enabling controlled spreading without damaging flange faces.
Provides excellent durability and long service life, ensuring reliable performance in demanding industrial conditions.
Offers simple, power-free operation, making it ideal for fieldwork, remote locations, and areas without hydraulic access.
Ensures easy handling, transport, and on-site use during shutdowns, maintenance, and field service tasks.
Provides secure placement between flange joints, enhancing stability during spreading operations.
Reduces operator effort and improves control, supporting safe use during prolonged or repetitive tasks.
Delivers smooth and precise flange separation, improving safety and reducing the risk of sudden flange movement.
Product Specifications:
- Technical Data
| Parameter | Specification |
|---|---|
| Type | Wedge Type Flange Spreader |
| Model No. | TFS-8M |
| Jaws Closed | 6 mm / 0.24" |
| Jaws Open | 80 mm / 3.16" |
| Rated Force | 8 ton / 17,000 lbs |
| Weight | 7 kg / 16 lbs |
