Straight and Offset Open type

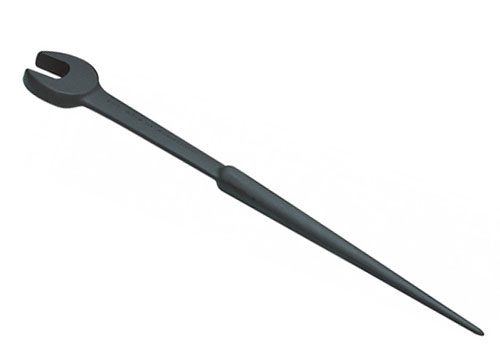

Straight and Offset Handle Open Jaw Type Slugging Wrenches are robust, heavy-duty impact tools designed to deliver high torque through hammer strikes. The open-jaw design allows the wrench to engage directly with nuts or bolt heads of varying sizes, providing versatility for a wide range of fastening applications.
The straight handle offers direct access for hammer striking, while the offset handle provides additional clearance for use in confined or obstructed spaces.
Technical Specifications:
Wrench Size : 5/8 to 2.3/8
Applications:
- Used for loosening or tightening heavy-duty bolts and nuts where conventional wrenches cannot provide sufficient torque.
- Ideal for removing seized, rusted, or over-torqued fasteners in industrial maintenance jobs.
- Effective on pipelines, flanges, valves, structural joints, and heavy machinery assemblies.
- Suitable for maintenance, overhaul, and shutdown operations in oil and gas, petrochemical, power plants, refineries, and heavy engineering industries.
- Well-suited for field service and on-site work where power tools are impractical or unsafe.
Key Features :
Allows direct engagement with nuts or bolt heads of varying sizes, offering versatility on-site.
Straight handle provides direct hammer access; offset handle offers clearance for tight or obstructed spaces.
Ensures durability and impact resistance, withstanding repeated hammer strikes in harsh industrial environments.
Performs consistently in oil and gas, petrochemical, power plants, refineries, and heavy mechanical maintenance.
Designed to efficiently transfer energy for loosening or tightening stubborn fasteners.
Product Specifications:
- Technical Data
| Wrench Size (A/F) | ||||||
| METRIC SIZE | SAE SIZE | |||||
| Part No. | Size | Part No. | Size | Head Dia. | Head Thk. | Length (Mm) |
| SDOM-16 | 16 | SDO-23 | 5/8” | 35 | 12 | 305 |
| SDOM-17 | 17 | SDO-24 | 11/16” | 38 | 12 | 305 |
| SDOM-19 | 19 | SDO-25 | 3/4” | 42 | 12 | 305 |
| SDOM-22 | 22 | SDO-27 | 13/16” | 56 | 16 | 445 |
| SDOM-23 | 23 | SDO-28 | 7/8” | 56 | 16 | 445 |
| SDOM-24 | 24 | SDO-29 | 15/16” | 56 | 16 | 445 |
| SDOM-26 | 26 | SDO-30 | 1” | 56 | 16 | 445 |
| SDOM-27 | 27 | SDO-31 | 1.1/16” | 56 | 16 | 445 |
| SDOM-28 | 28 | SDO-32 | 1.1/8” | 56 | 16 | 445 |
| SDOM-30 | 30 | SDO-33 | 1.3/16” | 56 | 16 | 445 |
| SDOM-32 | 32 | SDO-34 | 1.1/4” | 84 | 24 | 648 |
| SDOM-36 | 36 | SDO-37 | 1.7/16” | 84 | 24 | 648 |
| SDOM-38 | 38 | SDO-38 | 1.1/2” | 84 | 24 | 648 |
| SDOM-41 | 41 | SDO-39 | 1.5/8” | 112 | 24 | 775 |
| SDOM-43 | 43 | SDO-40 | 1.11/16” | 112 | 24 | 775 |
| SDOM-46 | 46 | SDO-42 | 1.13/16” | 112 | 24 | 775 |
| SDOM-48 | 48 | SDO-43 | 1.7/8” | 112 | 24 | 775 |
| SDOM-50 | 50 | SDO-44 | 1.15/16” | 112 | 27 | 775 |
| SDOM-55 | 55 | SDO-45 | 2” | 160 | 30 | 850 |
| SDOM-60 | 60 | SDO-48 | 2.3/8” | 160 | 30 | 850 |
