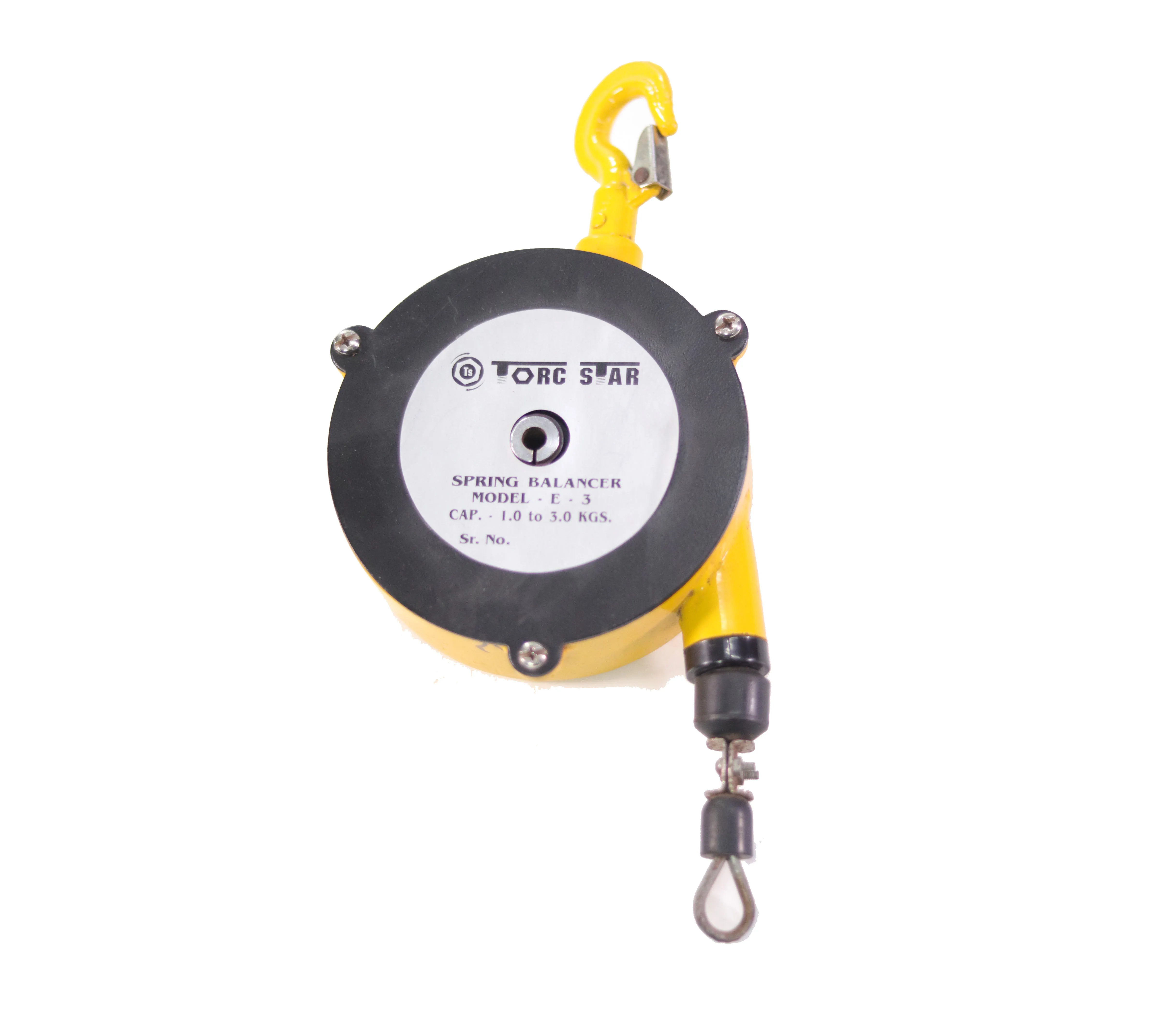

Spring Balancer
The E-Series Spring Balancers are precision-engineered load-handling devices designed to support tools and equipment by counterbalancing their weight, allowing smooth, fatigue-free operation. These balancers maintain the tool in a near-weightless state, reducing operator strain and improving productivity in repetitive or extended-duration industrial tasks.
Constructed with high-strength housings and durable spring mechanisms, the E-Series delivers stable, controlled movement across the entire stroke range. Their compact design, consistent load capacity, and reliable tension control make them suitable for workshops, assembly lines, manufacturing units, welding operations,and material-handling stations.
Technical Specifications:
Minimum Balancing Capacity : 0.25-180 kg
Maximum Balancing Capacity : 1.5-200 kg
Travel : 1.5m
Rope Dia. : 2-8 mm
Weight : 1-36 kg
Applications:
Supports tools to reduce operator fatigue and improve workflow efficiency.
Ideal for holding pneumatic, electric, and manual tools during repetitive operations.
Balances welding guns, grinders, and cutting tools for smoother handling.
Assists in precision assembly by stabilizing lightweight hand tools.
Helps suspend equipment used for continuous packing processes.
Keeps tools accessible and weightless during service tasks.
Supports lightweight devices for stitching, tagging, and finishing operations.
Keeps tools organized, reduces clutter, and enhances safety.
Key Features:
Models from 0.25 kg up to 200 kg to suit light, medium, and heavy tools.
Maintains tools in a near-weightless condition for easy handling and operator comfort.
Built with durable springs, strong housing, and corrosion-resistant components for long service life.
Ensures stable, controlled lifting and lowering without sudden movements.
Reduces operator fatigue and minimizes the risk of dropping tools during operation.
Ideal for repetitive tasks, reducing downtime and increasing work efficiency.
Ensures smooth cable retraction and extended operational durability.
Easy to install on workstations, rail systems, or overhead structures.
Compatible with Transformer/Bridge Rail Trolley systems for maximum flexibility.
Long-lasting cable with proper load-bearing capacity to prevent wear and breakage.
Product Specifications:
- Technical Data
| MODEL NO. | BALANCING CAPACITY | TRAVEL In Mtr. |
ROPE Dia. Mm. |
UNIT Weight |
|
| Min. Kgs. | Max. Kgs. | ||||
| E-1 | 0.25 | 1.5 | 1.5 | 2 | 1 |
| E-2 | 1 | 2 | 1.5 | 2 | 1 |
| E-3 | 1 | 3 | 1.5 | 2.5 | 1.8 |
| E-5 | 2.5 | 5 | 1.5 | 2.5 | 1.8 |
| E-9 | 4.5 | 9 | 1.5 | 4 | 4.2 |
| E-15 | 9 | 15 | 1.5 | 4 | 4.5 |
| E-22 | 15 | 22 | 1.5 | 5 | 9 |
| E-30 | 22 | 30 | 1.5 | 5 | 9.5 |
| E-40 | 30 | 40 | 1.5 | 5 | 10.5 |
| E-50 | 40 | 50 | 1.5 | 5 | 11.2 |
| E-60 | 50 | 60 | 1.5 | 5 | 12.6 |
| E-70 | 60 | 70 | 1.5 | 5 | 13.2 |
| E-85 | 70 | 85 | 1.5 | 8 | 25 |
| E-100 | 85 | 100 | 1.5 | 8 | 27.5 |
| E-120 | 100 | 120 | 1.5 | 8 | 30.5 |
| E-150 | 120 | 150 | 1.5 | 8 | 32 |
| E-180 | 150 | 180 | 1.5 | 8 | 35 |
| E-200 | 180 | 200 | 1.5 | 8 | 36 |
