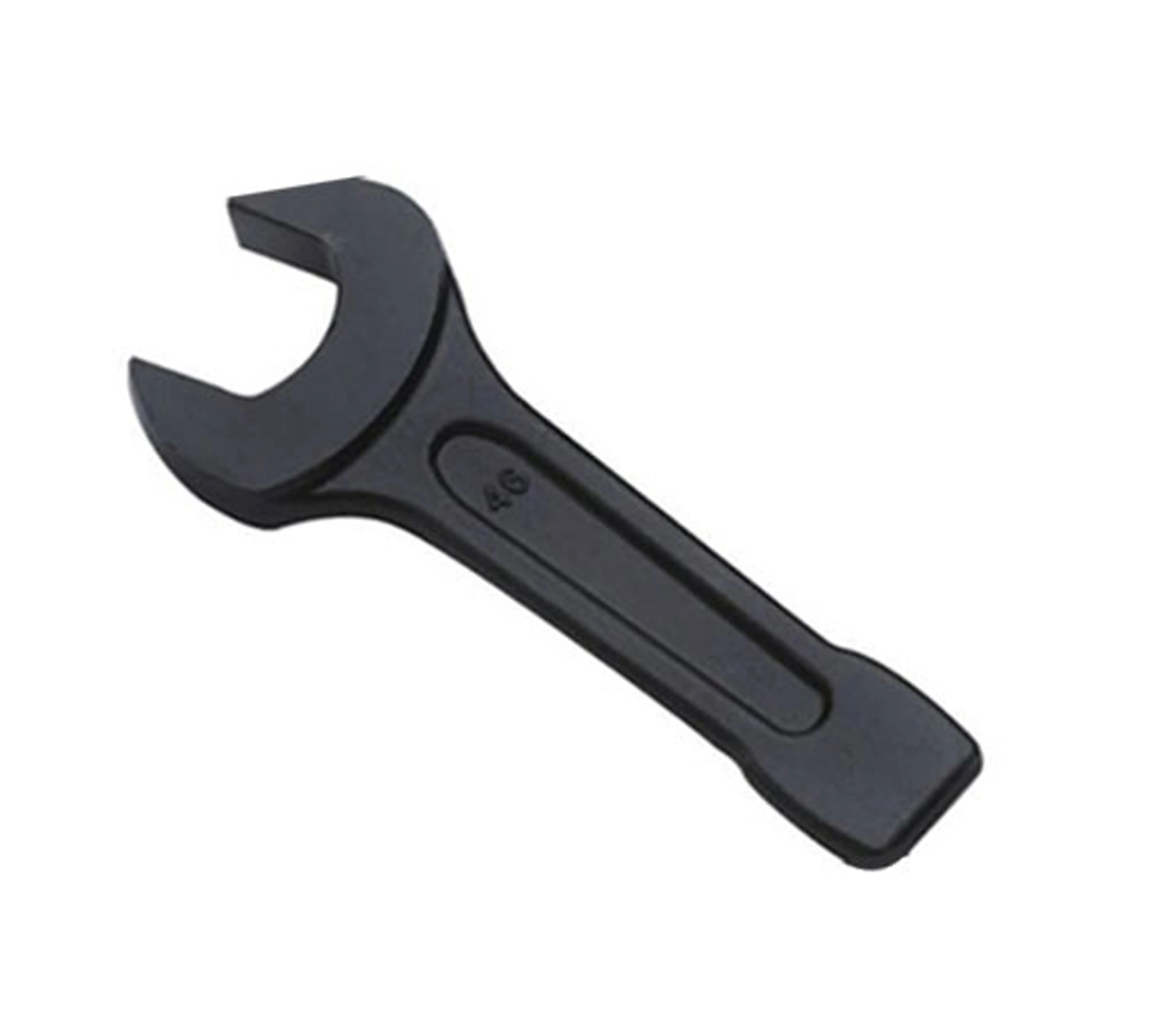

Open Jaw Type
The Open Jaw Type Slugging Wrench is a robust, forged tool meant for high-impact bolting jobs where standard wrenches may fail — such as when bolts are seized, corroded, or over-torqued. Designed with a sturdy open jaw that fits directly over bolt heads, the wrench allows operators to apply high torque by striking the hammer-ready end.
Constructed from high-tensile alloy steel and heat-treated for maximum impact resistance, the wrench ensures safe and effective torque application even under severe working conditions.
Technical Specifications:
Wrench Size : 3/4 to 5 inch.
Applications:
- Loosening or tightening heavy-duty bolts and nuts, especially those that are rusted, seized, or over-torqued.
- Maintenance and repair of flanges, pipelines, valves, structural joints, and mechanical assemblies.
- Industrial maintenance, shutdown, and overhaul jobs in oil & gas, petrochemical plants, refineries, power plants, and heavy-engineering sites.
- Situations where power tools or hydraulic torque wrenches are impractical or cannot be used.
- Field service and site work requiring maximum torque via hammer impact rather than manual force.
Key Features:
Provides stable contact with fasteners, reducing slippage during impact-based operations.
Ensures shock resistance and long service life, even under repeated hammer impacts.
Designed for safe and efficient energy transfer when struck with a hammer, enabling high torque output.
Accepts a range of bolt and nut sizes, offering versatility on-site.
Capable of handling heavy-duty bolting tasks in industrial, structural, and mechanical applications.
Built to perform in oil & gas, petrochemical, power-plant, refinery, pipeline, and heavy-machinery environments.
Product Specifications:
- Technical Data
| Wrench Size (A/F) | ||||||
| METRIC SIZE | SAE SIZE | |||||
| Part No. | Size | Part No. | Size | Head Dia. | Head Thk. | Length (Mm) |
| TDM- 19 | 19 | TDS-25 | 3/4” | 54 | 18 | 190 |
| TDM- 22 | 22 | TDS-28 | 7/8” | 54 | 18 | 190 |
| TDM- 24 | 24 | TDS-29 | 15/16” | 54 | 18 | 190 |
| TDM- 27 | 27 | TDS-31 | 1.1/16” | 54 | 18 | 190 |
| TDM- 29 | 29 | TDS-32 | 1.1/8” | 54 | 18 | 190 |
| TDM- 30 | 30 | TDS-33 | 1.3/16” | 54 | 18 | 190 |
| TDM- 32 | 32 | TDS-34 | 1.1/4” | 80 | 18 | 210 |
| TDM- 33 | 33 | TDS-35 | 1.5/16” | 80 | 18 | 210 |
| TDM- 35 | 35 | TDS-36 | 1.3/8” | 80 | 18 | 210 |
| TDM- 36 | 36 | TDS-37 | 1.7/16” | 80 | 18 | 210 |
| TDM- 38 | 38 | TDS-38 | 1.1/2” | 80 | 18 | 210 |
| TDM- 41 | 41 | TDS-39 | 1.5/8” | 110 | 22 | 275 |
| TDM- 43 | 43 | TDS-40 | 1.11/16” | 110 | 22 | 275 |
| TDM- 44 | 44 | TDS-41 | 1.3/4” | 110 | 22 | 275 |
| TDM- 46 | 46 | TDS-42 | 1.13/16” | 110 | 22 | 275 |
| TDM- 47 | 47 | TDS-43 | 1.7/8” | 110 | 22 | 275 |
| TDM- 50 | 50 | TDS-45 | 2” | 110 | 22 | 275 |
| TDM- 52 | 52 | TDS-46 | 2.1/16” | 135 | 25 | 325 |
| TDM- 55 | 55 | TDS-47 | 2.3/16” | 135 | 25 | 325 |
| TDM- 57 | 57 | TDS-48 | 2.1/4” | 135 | 25 | 325 |
| TDM- 60 | 60 | TDS-50 | 2.3/8” | 135 | 25 | 325 |
| TDM- 62 | 62 | TDS-51 | 2.7/16” | 150 | 32 | 362 |
| TDM- 63 | 63 | TDS-52 | 2.1/2” | 150 | 32 | 362 |
| TDM- 65 | 65 | TDS-53 | 2.9/16” | 150 | 32 | 362 |
| TDM- 67 | 67 | TDS-54 | 2.5/8” | 150 | 32 | 362 |
| TDM- 70 | 70 | TDS-56 | 2.3/4” | 150 | 32 | 362 |
| TDM- 71 | 71 | TDS-57 | 2.13/16” | 172 | 36 | 405 |
| TDM- 75 | 75 | TDS-59 | 2.15/16” | 172 | 36 | 405 |
| TDM- 76 | 76 | TDS-60 | 3” | 172 | 36 | 405 |
| TDM- 80 | 80 | TDS-61 | 3.1/8” | 172 | 36 | 405 |
| TDM- 85 | 85 | TDS-63 | 3.3/8” | 180 | 38 | 430 |
| TDM- 90 | 90 | TDS-64 | 3.5/8” | 195 | 40 | 455 |
| TDM- 95 | 95 | TDS-65 | 3.3/4” | 195 | 40 | 455 |
| TDM- 98 | 98 | TDS-66 | 3.7/8” | 206 | 40 | 455 |
| TDM- 100 | 100 | TDS-67 | 4” | 210 | 47 | 500 |
| TDM- 105 | 105 | TDS-68 | 4.1/8” | 220 | 47 | 500 |
| TDM- 110 | 110 | TDS-69 | 4.1/4” | 226 | 47 | 500 |
| TDM- 115 | 115 | TDS-70 | 4.1/2” | 238 | 56 | 550 |
| TDM- 120 | 120 | TDS-72 | 4.3/4” | 247 | 56 | 550 |
| TDM- 125 | 125 | TDS-73 | 4.7/8” | 255 | 56 | 550 |
| TDM- 130 | 130 | TDS-74 | 5” | 275 | 60 | 575 |
