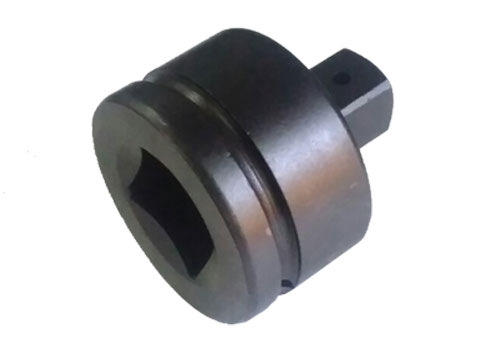

Square Drive Adapter
Square Drive Adapters are engineered to provide reliable and secure connection between torque tools and sockets of different drive sizes.
The Square Drive Adapter is a versatile and robust tool designed to connect sockets of various sizes to torque wrenches, impact wrenches, or ratchets. Engineered for precision and durability, it enables efficient fastening and unfastening of bolts and nuts in industrial, automotive, and mechanical applications.
Technical Specifications:
Female Square : ¼” to 3 ½”
Male Square : 3/8” to 2 ½”
Catalogue.
Applications:
- Enables use of different socket sizes with a single drive tool for versatility.
- Facilitates work in tight or restricted spaces where direct tool access is limited.
Key Features:
Provides durability and reliable performance under high-torque industrial and mechanical applications.
Prevents slippage during operation, ensuring safe and accurate fastening or unfastening.
Easy to handle and transport, suitable for on-site maintenance and assembly work.
Ideal for pipelines, pressure vessels, structural assemblies, and other demanding bolting tasks.
Product Specifications:
- Technical Data
| Part No. | Female | Male | OAL |
| square | square | (mm) | |
| TIA- 1 | 1/4” | 3/8” | 27 |
| TIA- 2 | 3/8” | 1/4” | 32 |
| TIA- 3 | 3/8” | 1/2” | 35 |
| TIA- 4 | 1/2” | 3/8” | 38 |
| TIA- 5 | 3/4” | 1/2” | 44 |
| TIA- 6 | 1/2” | 3/4” | 44 |
| TIA- 7 | 1/2” | ½” | 38 |
| TIA- 8 | 3/4” | 3/4” | 44 |
| TIA- 9 | 3/4” | 1” | 44 |
| TIA-10 | 1” | 3/4” | 70 |
| TIA-11 | 1” | 1. 1/2” | 90 |
| TIA-12 | 1” | 1” | 80 |
| TIA-14 | 1. 1/2” | 1” | 110 |
| TIA- 16 | 1.1/2” | 2.1/2” | 135 |
| TIA- 17 | 2.1/2” | 1.1/2” | 165 |
| TIA- 18 | 2.1/2” | 3.1/2” | 210 |
| TIA- 19 | 3.1/2” | 2.1/2” | 240 |
